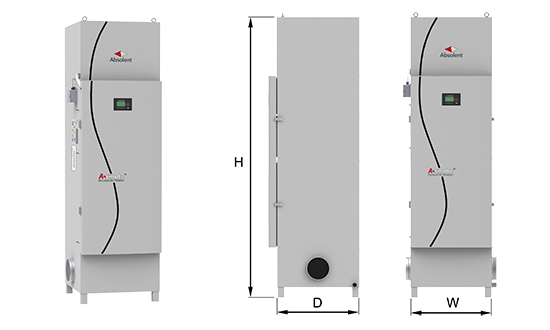

The Absolent Type A smoke·20 oil smoke filter features one of the most effective systems in the world for cleaning oil mist and oil smoke. The filter unit is placed adjacent to one or a series of machines. The A smoke·20 oil smoke collector is designed for handling tough applications with air flows up to 1180 cfm.
- The highest possible collecting efficiency
- Designed for oil smoke
- Extremely low maintenance
- Very reliable
- Extremely low noise level
| A•smoke20 Technical Data | Metric | Imperial |
|---|---|---|
| (H) Height | 2421 mm | 93.3 in |
| (W) Width | 738 mm | 29.1 in |
| (D) Depth | 781 mm | 30.7 in |
| Inlet duct Ø | 200 mm | 7.8 in* |
| Weight with dry filters | 280 kg | 617 lbs |
| Motor output, fan motor | 2.2 kW | 3.5 hp |
| Max. airflow | 2000 m³/h | 1180 cfm |
*Inlet duct not included for the US market
