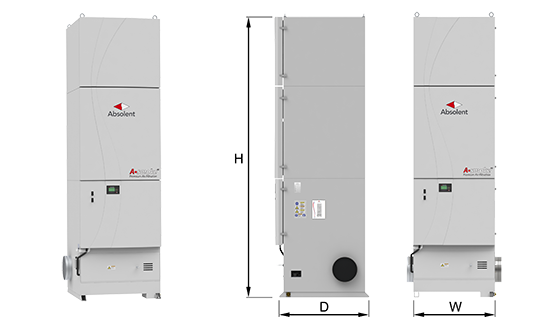

The Absolent Type A smoke·40 oil smoke filter features one of the most effective systems in the world for cleaning oil mist and oil smoke. The filter unit is placed adjacent to one or a series of machines. The A smoke400 oil smoke collector is designed for handling tough applications with air flows up to 2350 cfm.
- The highest possible collecting efficiency
- Designed for oil smoke
- Extremely low maintenance
- Very reliable
- Extremely low noise level
| A•smoke40 Technical Data | Metric | Imperial |
|---|---|---|
| (H) Height | 3530 mm | 139.0 in |
| (W) Width | 1112 mm* | 43.8 in* |
| (D) Depth | 1168 mm | 46.0 in |
| Inlet duct Ø | 315 mm | 12.4 in** |
| Weight with dry filters | 1000 kg | 2205 lbs |
| Motor output, fan motor | 7.5 kW | 10 hp |
| Max. airflow | 4000 m³/h | 2350 cfm |
*Total width incl. pump case +80 mm/+3.1 inches. **Inlet duct not included for the US market.
