Avani’s grinding booths provide complete freedom for workers to move effortlessly within the booth to perform any type of the manufacturing process. Other possible uses: welding, sanding, batch mixing, powder coating, painting, or required air quality assembly.
Grinding booths are commonly used where source capture is not practical. Booths can fit anywhere on the plant floor where you have open space. Booths come either self-contained or ducted to a collector away from the booth. Avani offers the standard open booth or forced air return(push-pull) system, which require less air volumes.

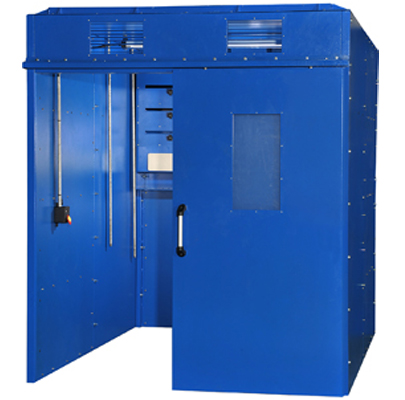

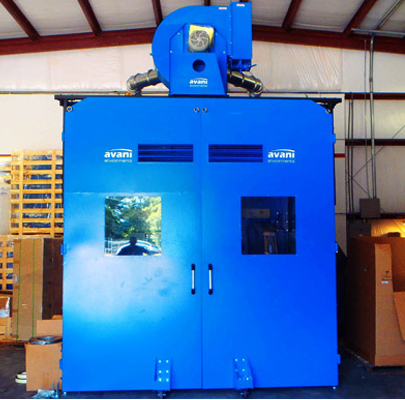

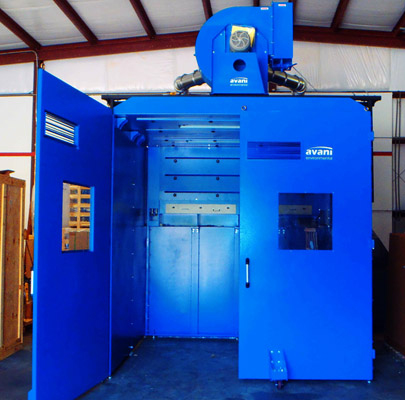

The GR-6000 is our Premier Grinding Booth. The 6000 series comes standard with 1 1/2" x 4" (rectangular tubing) skeleton with 12 gauge dual panels as the shell. Two gas or compressed air lines and dual 110V outlets are built into the back draft panel terminated on top for easy connections.
The Grinding Booth Features:
- Two configurations (standard or forced air return)
- No hoods or ductwork required on self-contained booths
- Ledgeless construction (reduces dust build-up)
- Non-self contained booths utilizing new or existing dust collectors
- Standard or customized sizes, shapes, and walls
- Easy high-efficiency cartridges
- Vertical cartridge removal (no tools required)
- Magnehelic gauge (filter life and required service intervals)
- Easy removable dust drawers (below cartridge service door)
- Single sided service (cartridges & dust drawers)
- Modular design (allows for easy set up and expansion)
- Dual sided 12-gauge welded steel walls
- Powder coated (inside/outside)
- High efficiency premium motors
- Backward Incline Fan (aluminum spark resistance)
- Explosion proof lights and light covers
- Control UL approved control panel (full controls)
- Built-In fork slots for easy placement
Optional Features:
- HEPA filter or safety after filter assembly
- Acoustical internal lined steel panels provide sound absorption
- Vinyl front curtains with adjustable heights to close off booth completely
- Vinyl acoustical fabric (lower cost alternative)
- Vinyl (soft-wall) or PVC side and top panels (cost effective solution)
- Sprinklers or fire surpresant systems
- Digital control panel with touch screen displays
- Variable frequency drives
- Work tables, fixtures, jigs, fume arms, down draft tables, and ducting
- Motor voltages
