Avani Environmental

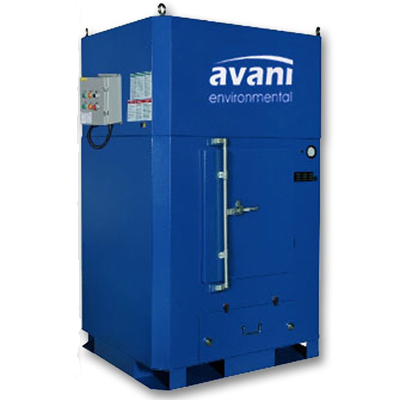

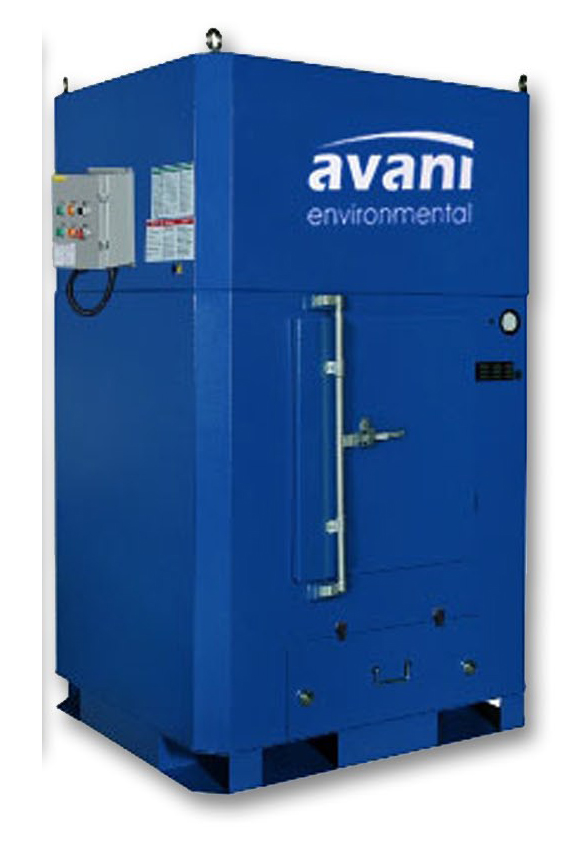

ACC-3

Features:

  • All Welded Construction
  • Powder coat finish
  • On-line self cleaning
  • Integrated Control Panel
  • Direct drive, backward inclined fan
  • Static Pressure Gauge
  • 80/20 FR cartridge media
  • Internal silencer fan housing
  • Built-in fork-lift slots and lifting lugs
  • Goyen valve

Optional:

  • HEPA after filter
  • Outdoor Cover
  • Fire Suppressant System
  • VOC Filtration
  • Wired at 230V

ACC-3 Specifications:

  • Motor: 3 HP / 460V / 60 Hz - 3 phase
  • Nominal Air Flow: 1500 CFM
  • # of Cartridges: (2) or (4) -  80/20 FR filtering area 538 ft sq / 1076 ft sq
  • No. of Valves: 1
  • Compressed air requirements: 90 PSI
  • Dimension
    • ACC-3-2: 44" x 41" x 87"
    • ACC-3-4: 57" x 42" x 87"
