Avani Environmental

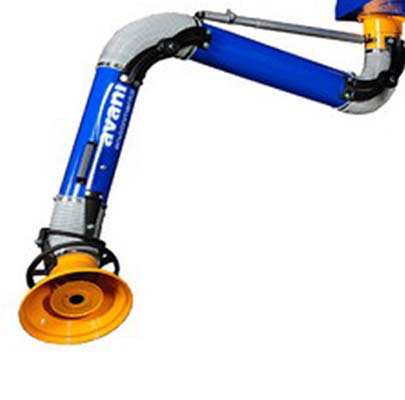

Hanging Fume Arm

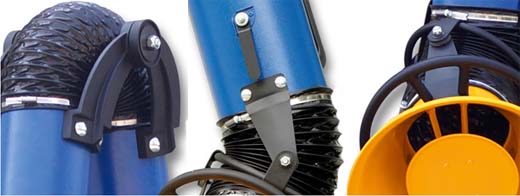

Avani's hanging fume arms provide the most economical and effective methods for the capture of fumes. The use of self-supporting joints, flexible hoses, and smooth bore tubing allow for easy placement of the arm's hood near the source of the particulate and smoke. Fume arm tubes are fabricated of steel with cast aluminum joints and are fully adjustable to the workers desired tension. The arms include a handle in order to facilitate easy re-positioning.

Standard Features:

  • Galvanized steel tubes
  • Powder coated finish
  • All external joints and adjustments
  • Internal damper
  • Grab handle around the hood
  • Heavy duty 360° swivel with safety stop
  • Heavy duty telescoping spring
  • Joint hose rated at 200°

Available Sizes:

  • Arm Lengths: 3 ft, 5 ft, 7 ft, 8.5 ft, 10 ft, 14 ft
  • Arm Diameters: 3 in, 4 in, 5 in, 6 in, 8 in
  • Airflow: 60 - 1200 cfm
