Features:
- All Welded Construction
- Powder coat finish
- On-line self cleaning
- Integrated Control Panel
- Direct drive, backward inclined fan
- Static Pressure Gauge
- Cartridge Efficiency is 99% at 1 micron
- Internal silencer fan housing
- Built-in fork-lift slots and lifting lugs
- Goyen valve
Optional:
- HEPA after filter
- Outdoor Cover
- Fire Suppressant System
- VOC Filtration
- Optional 80/20 FR cartridge media
- wired at 230V

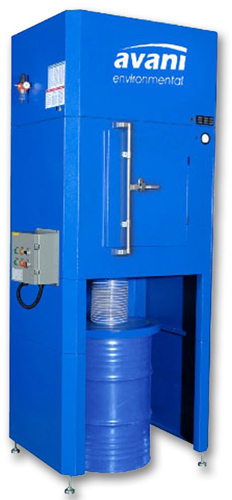

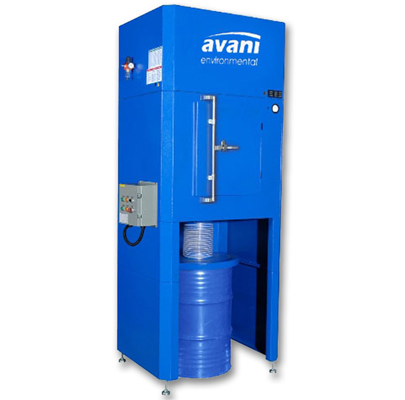

SCC-3D Specifications:
- Motor: 3 HP / 460V / 60Hz
- Nominal Air Flow: 1500 CFM
- # of Cartridges: 2 or 4 - 80/20 FR filtering area 538 ft sq / 1076 ft sq
- Inlet Size: 8 inch dia
- Drum Size: 55 gallon
- Dimension
- SCC-3D-2: 51" x 42" x 121"
- SCC-3D-4: 64" x 42" x 121"
