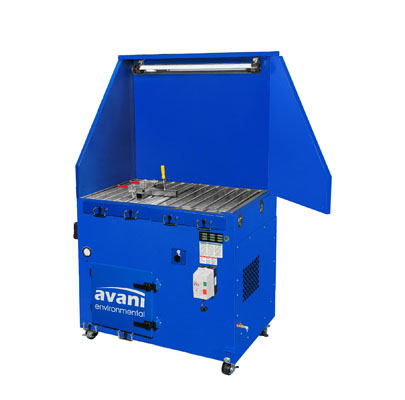

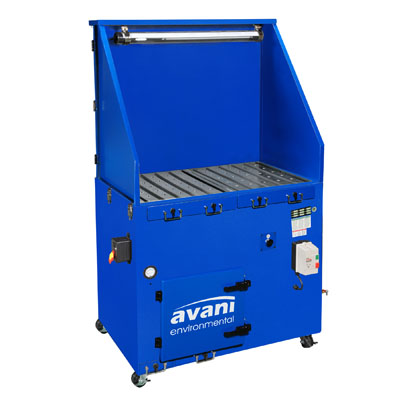

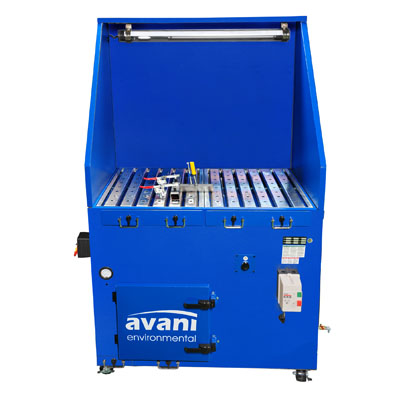

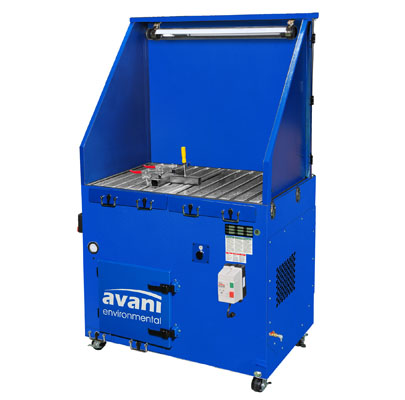

The SDT 1.5 downdraft table shows versatility through design featuring available table accessories. This table features a 1.5 hp motor, reverse jet pulse cleaning and a differential pressure gauge. This table is a great choice for plasma processes with heavy smoke. It with the fume arm addition it utilizes a two-phase filtration system.
Standard Features:
- High Efficiency Re-usable Filter Cartridge
- Heavy Gauge Powder Coated Steel
- Accepts 5/8" Jig Fixtures
- Manual Reverse Jet Pulse Cleaning
- UL Approved Control Panel
- Easy Access Filter Doors
- 2 Electrical Outlets
- Differential Pressure Gauges
Optional Features:
- Explosion Proof Light
- Exhaust 80% back draft and 20% downdraft
- Explosion Proof Vents
- Different Filter Media
- Silencers: inlet and outlet
- Rotary Air Lock
- Welding machine shelf
- Gas tank shelf

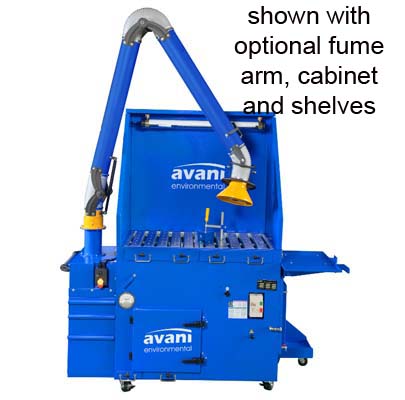

- Fume arm addition
- Customized Colors
Specification SDT-1.5:
- Nominal Air Flow: 1100 CFM
- Motor: 1.5 HP TEFC NEMA, Aluminum Impeller / 60 HZ / 1 Ph
- Compressed Air Requirement: 90 PSI
- Dimensions: 32"x51"x78"
- Weight: 882 lbs
