The Absolent Type A smoke·80 oil smoke filter features one of the most effective systems in the world for cleaning oil mist and oil smoke. The filter unit is placed adjacent to one or a series of machines. The A smoke400 oil smoke collector is designed for handling tough applications with air flows up to 4700 cfm.
- The highest possible collecting efficiency
- Designed for oil smoke
- Extremely low maintenance
- Very reliable
- Extremely low noise level

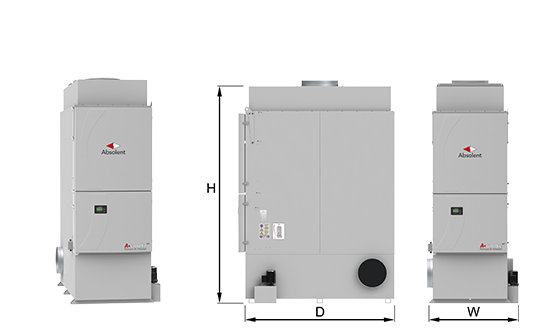

| A•smoke80T Technical Data | Metric | Imperial |
|---|---|---|
| (H) Height | 2940 mm | 115.7 in |
| (W) Width | 1153 mm* | 45.4 in* |
| (D) Depth | 2115 mm | 83.3 in |
| Inlet duct Ø | 400 mm | 15.7 in** |
| Weight with dry filters | 1430 kg | 3153 lbs |
| Max. airflow | 8000 m³/h | 4700 cfm |
*Total width incl. pump case +80 mm/+3.1 inches. This unit does not include a fan. **Inlet duct not included for the US market.
